CSH1100A-25

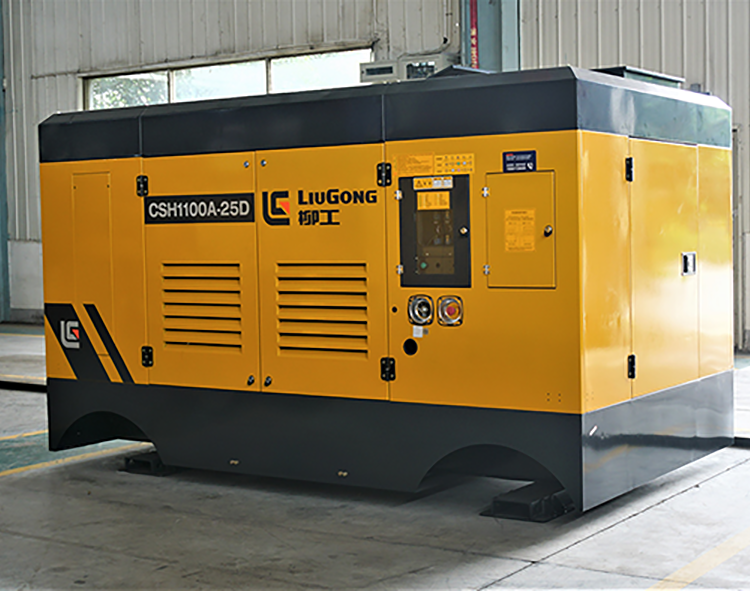

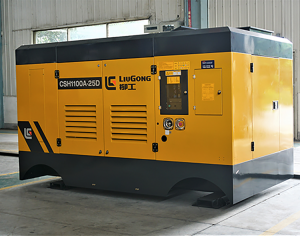

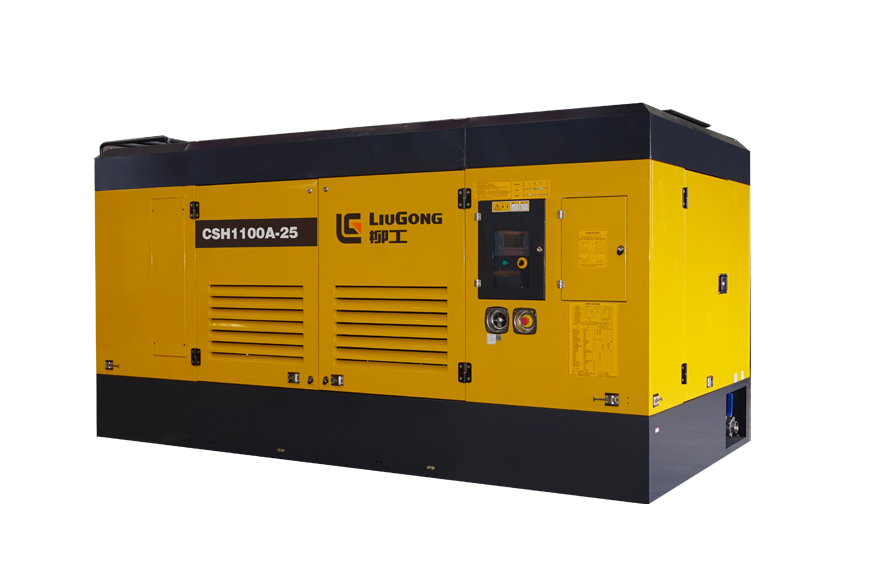

CSH1100A-25 Featured Image
  • CSH1100A-25

Short Description:

  • Suitable for high-altitude working conditions, fully verified at an altitude of 4800 meters.
  • Two sizes are available, meeting the needs of different customers.
  • Suitable for excavation, modification drilling, and vehicle-mounted drilling rigs. The short body can be moved without being too wide in different situations. It is applicable to different diameters in dual working conditions.
  • Parameters can be precisely set according to the construction site conditions. Three working conditions can be switched at will, saving more fuel.
  • Smart Manager System: including remote control, fault reminder, report generation, etc.
  • 7-inch color screen controller: intelligent control, simple operation, and clear information.


Product Detail

Product Tags

Compressor technical specifications
Dual transformation

operating condition1

operating condition2
Free air delivery[m³/min]

26-22

31-25
Free air delivery[CFM]

930-780

1100-900
Pressure[bar]

16-22

16-25
Pressure[psi]

232-319

232-363
Compressor oil[L]

110
Element

LGIR



Engine specifications
Type

L9PLUST3
Power(kW)

294
Working and Idling Speed(rpm)

1830/1400

1930/1400
Number of Cylinders

6
Displacement (L)

8.9
Emission Levels(Standard)

Stage III
Fuel Capacity(L)

650



Dimensions and weight
Weight(t)

3.2
Outlet*Quantity

G2×1 & G¾×1
Overall Dimensions(mm) 3234x1993x2133
Noise [dB(A)]

83±3
