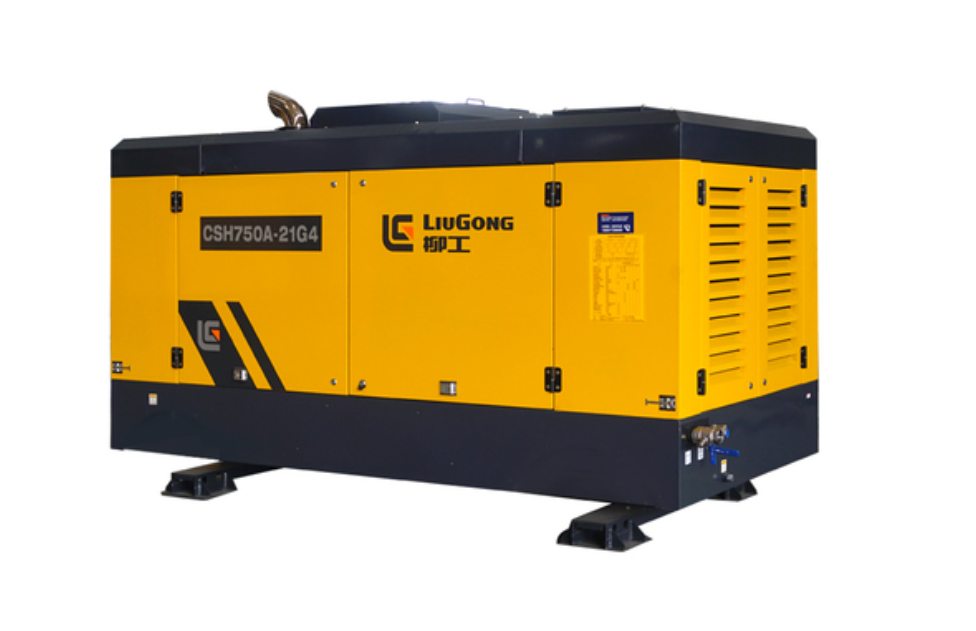

CSH750A-21A

Short Description:

High compression efficiency: Utilizing the LGIR two-stage compressor head, it reduces the leakage of compressed air and ensures sufficient pressure and exhaust volume.
Low energy consumption: The design focuses on energy efficiency, enabling efficient operation even under high flow demand.
Compact design: With a small footprint, it is suitable for various working environments.
Versatile applicability: Suitable for various industrial applications and meeting the needs of different industries.

Send email to us

Product Detail

Product Tags

Compressor technical specifications
Free air delivery[m³/min]	21
Free air delivery[CFM]	750
Pressure[bar]	21
Pressure[psi]	305
Compressor oil[L]	90
Element	LGIR

Engine specifications
Rated Power[kW]	180
Rated Speed [rpm]	1490
Protection/Insulation Grade	IP55/F
Energy Efficiency Index	IE3

Dimensions and weight
Weight(t)	2.8
Outlet*Quantity	G2×1 & G¾×1
Tire Size*Quantity	Skid mounted
Overall Dimensions(mm)	3200x1800x2100
Noise [dB(A)]	76±3

Previous: CSH1620A-40

Next: CSH1180A-31
