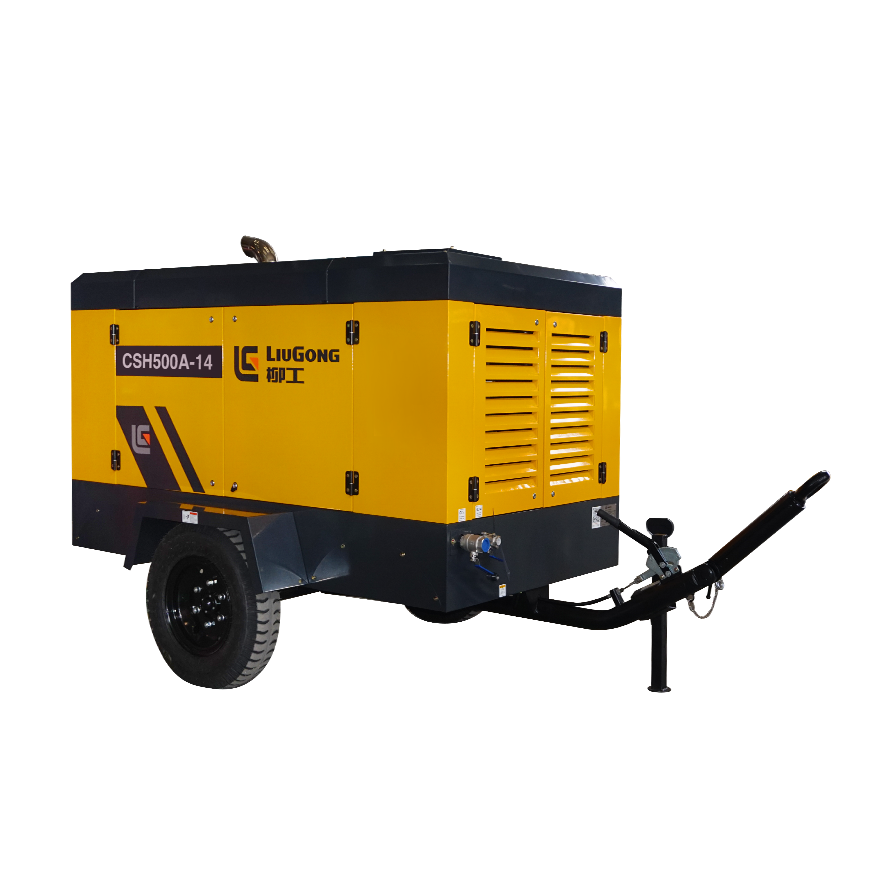

CSH500A-14
| Compressor technical specifications | |
| Dual transformation |
Single |
| Free air delivery[m³/min] |
15 |
| Free air delivery[CFM] |
500 |
| Pressure[bar] |
14 |
| Pressure[psi] |
203 |
| Compressor oil[L] |
35 |
| Element |
LGIR |
| Engine specifications | |
| Type |
YCA05190-T300 |
| Power(kW) |
140 |
| Working and Idling Speed(rpm) |
1950/1400 |
| Number of Cylinders |
4 |
| Displacement (L) |
4.837 |
| Emission Levels(Standard) |
Stage III |
| Fuel Capacity(L) |
180 |
| Dimensions and weight | |
| Weight(t) |
2 |
| Outlet*Quantity |
G1½×1 & G¾×1 |
| Tire Size*Quantity |
Two Tires |
| Overall Dimensions(mm) |
3326x2000x2113 |
| Noise [dB(A)] |
82±3 |
