CSH560A-8

CSH560A-8 Featured Image
  • CSH560A-8

Short Description:

●Intelligent control, sufficient gas volume, energy-saving and fuel-efficient

●The chassis adopts a modular design, with convenient switching between two wheel, four-wheel, and pry mounted models

●Convenient maintenance


Product Detail

Product Tags

Model
 CSH560A-8
Free Air Delivery  16 m³/min
Compressor Pressure  8 Bar
Compressor oil  35 L
Dual transformation  Single
Engine  Type YCA05190-T300
Engine Power 140 kW
Working and Idling speed 2200/1400 rpm
Number of cylinders  4
Displacement
 4.8 L
Fuel capacity
 180 L
Weight
 2 t
outlet×quantity
 G1½×1 & G¾×1
tire size×quantity
 two tires
Dimensions
 3326x2000x2113 mm
Noise
 82±3 dB(A)

  • Previous:
  • Next:
    • Write your message here and send it to us

    Related products

    • HGT800-20C

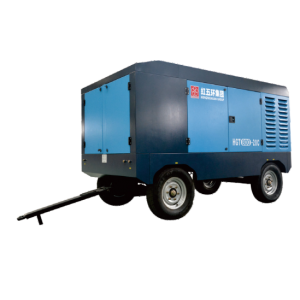

      HGT800-20C
