CSH1450A-35

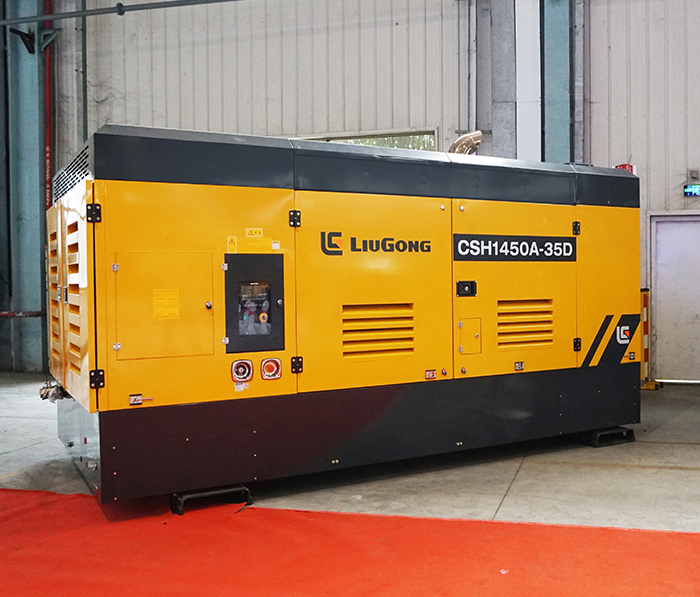

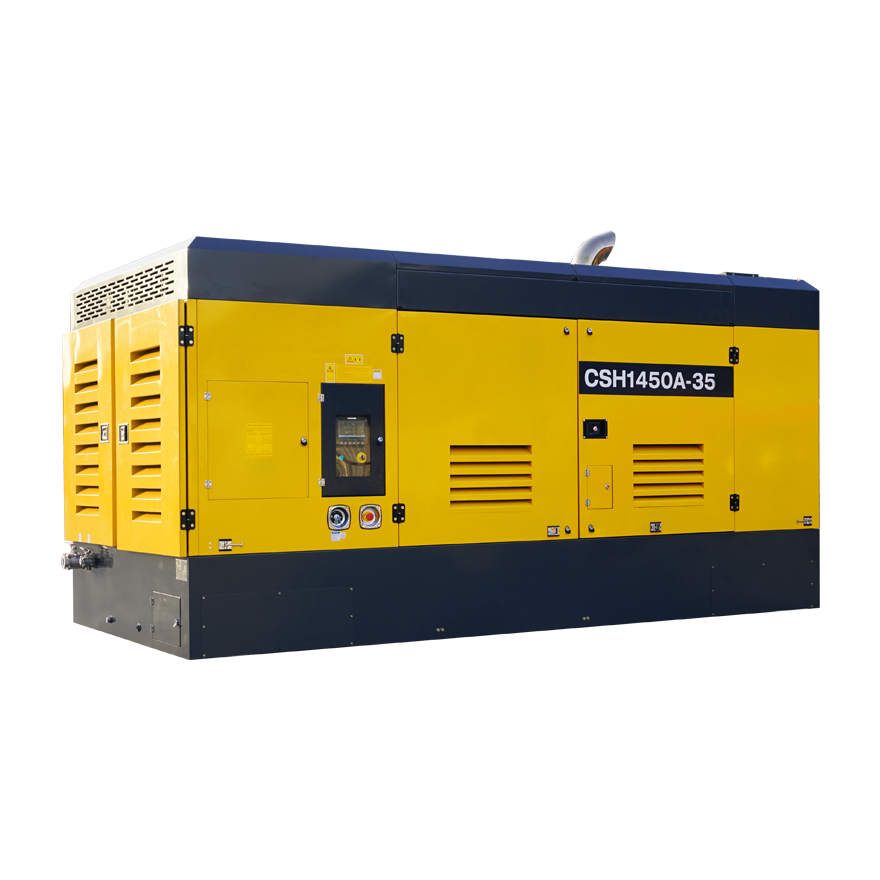

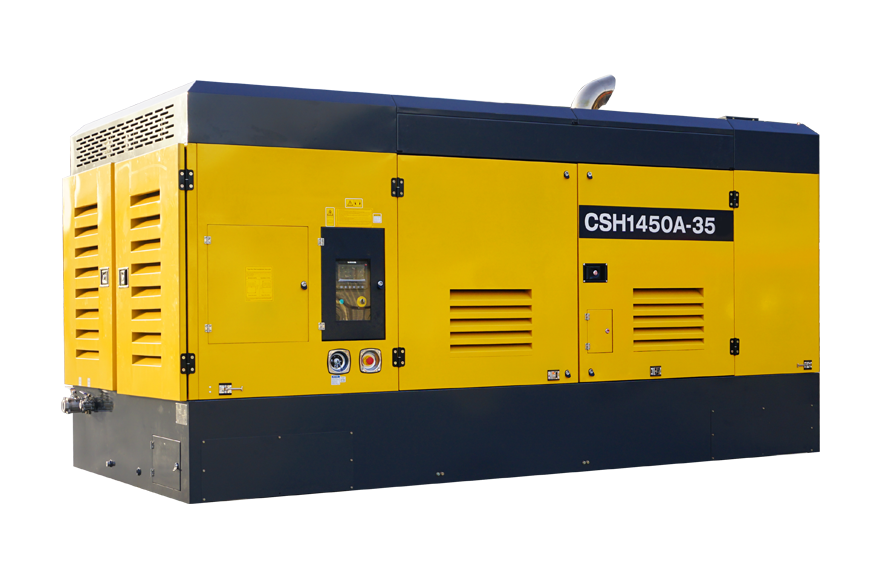

CSH1450A-35 Featured Image
  • CSH1450A-35

Short Description:

● Adopting LGIR two-stage compressor head, the compression efficiency is higher and provides more sufficient pressure. The machine head adopts a new high-efficiency profile to reduce the leakage of compressed air and ensure sufficient pressure and exhaust volume.

● Powerful power system: equipped with a high-power engine and a heavy-duty system design, it has excellent starting performance and outstanding fuel economy performance, suitable for various harsh working conditions.

● Gas volume intelligent adjustment: The intelligent control system can adapt to various complex working conditions, achieve intelligent automatic adjustment, and match the corresponding gas volume.

● Energy saving pressure regulation design: LiuGong has independently developed a unique control system that controls the engine with multiple threads. It can dynamically adjust the air volume and pressure in real-time to maintain an appropriate state, reducing excessive energy consumption.


Product Detail

Product Tags

Model CSH1450A-35
Free Air Delivery 41-39/41-35 m³/min
Compressor Pressure 21-25/21-40 Bar
Compressor oil  160 L
Dual transformation Dual
Engine  Type YCK16775-T300
Engine Power 570 kW
Working and Idling speed 1800/1300 rpm
Number of cylinders  6
Displacement 15.93 L
Fuel capacity 1100 L
Weight 6.4 t
outlet×quantity G2×1 & G¾×1
tire size×quantity Skid mounted
Dimensions 4443x2200x2540mm
Noise 85±3 dB(A)

1
