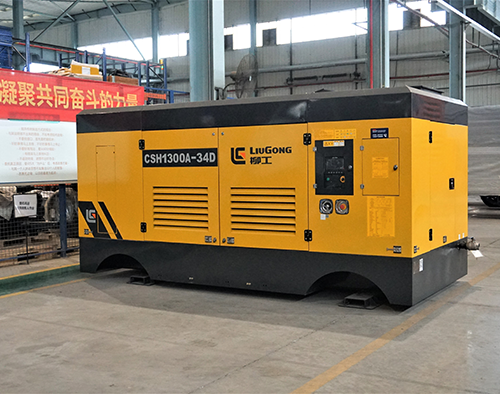

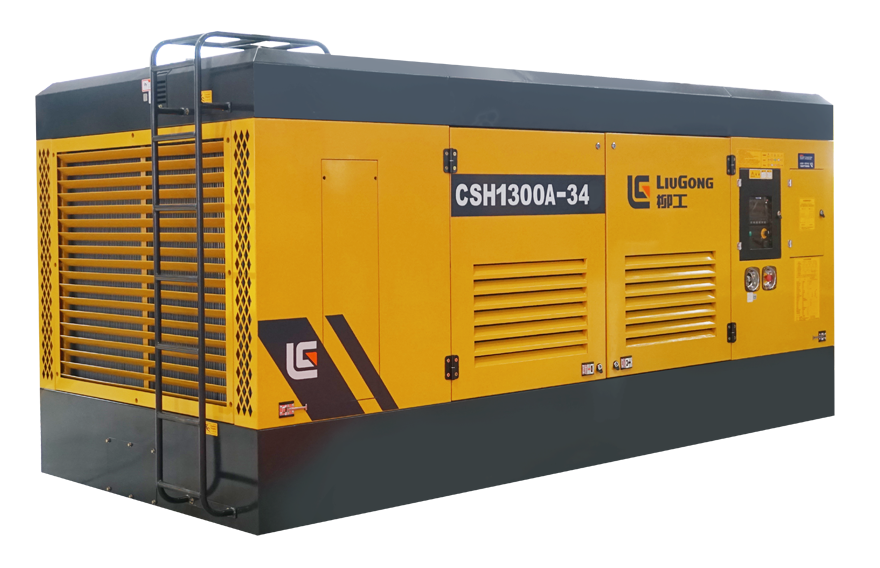

CSH1300A-34
| Compressor technical specifications | ||
| Dual transformation |
operating condition1 |
operating condition2 |
| Free air delivery[m³/min] |
31-29 |
36-32 |
| Free air delivery[CFM] |
1100-1030 |
1300-1150 |
| Pressure[bar] |
21-25 |
21-34 |
| Pressure[psi] |
305-363 |
305-493 |
| Compressor oil[L] |
120 |
|
| Element |
LGIR |
|
| Engine specifications | ||
| Type |
YC6K560-KT31 |
|
| Power(kW) |
412 |
|
| Working and Idling Speed(rpm) |
1600/1300 |
1830/1300 |
| Number of Cylinders |
6 |
|
| Displacement (L) |
13 |
|
| Emission Levels(Standard) |
Stage III |
|
| Fuel Capacity(L) |
700 |
|
| Dimensions and weight | |
| Weight(t) |
5.5 |
| Outlet*Quantity |
G2×1 & G¾×1 |
| Overall Dimensions(mm) |
4118x1832x2114 |
| Noise [dB(A)] |
85±3 |
