CSH1120A-31

CSH1120A-31 Featured Image
  • CSH1120A-31

Short Description:

● Adopting LGIR two-stage compressor head, it has high compression efficiency, reduces compressed air leakage, and ensures sufficient pressure and exhaust volume.

● Gas volume intelligent adjustment: The intelligent control system can adapt to various complex working conditions, achieve intelligent automatic adjustment, and match the corresponding gas volume.

● Liugong has independently developed a unique control system that controls the engine with multiple threads. It can dynamically adjust the air volume and pressure in real-time to maintain an appropriate state, reducing excessive energy consumption.


Product Detail

Product Tags

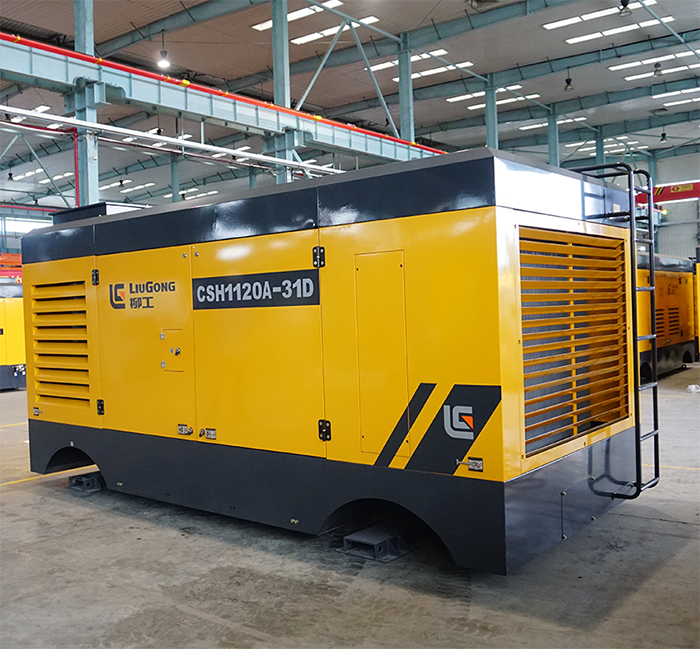

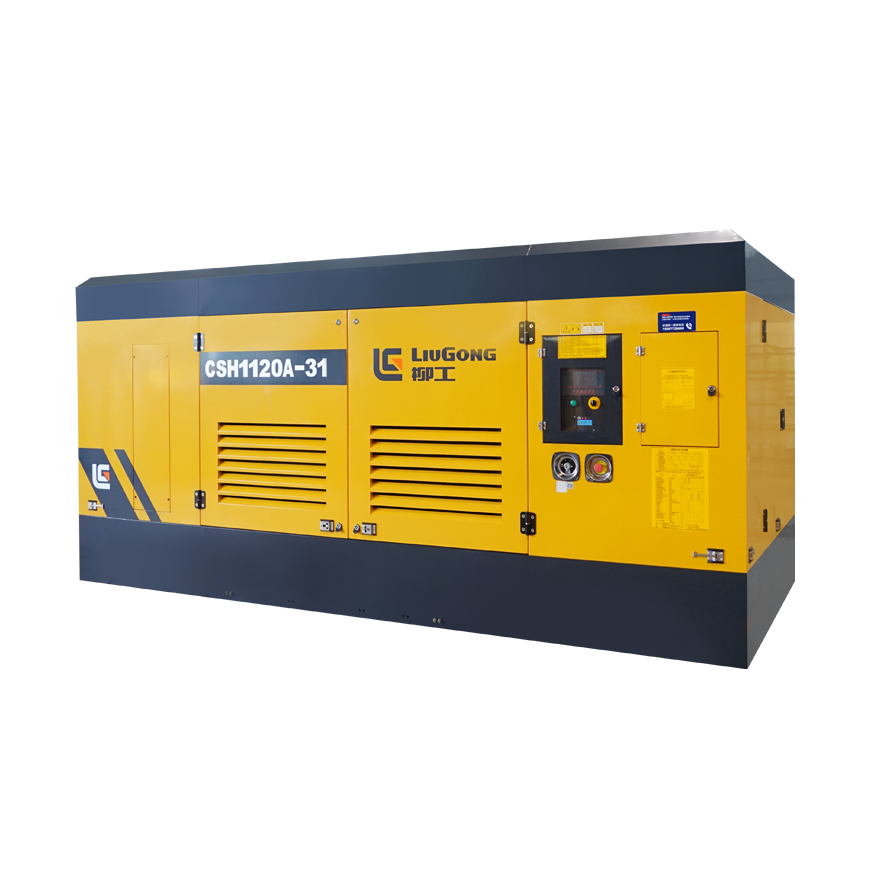

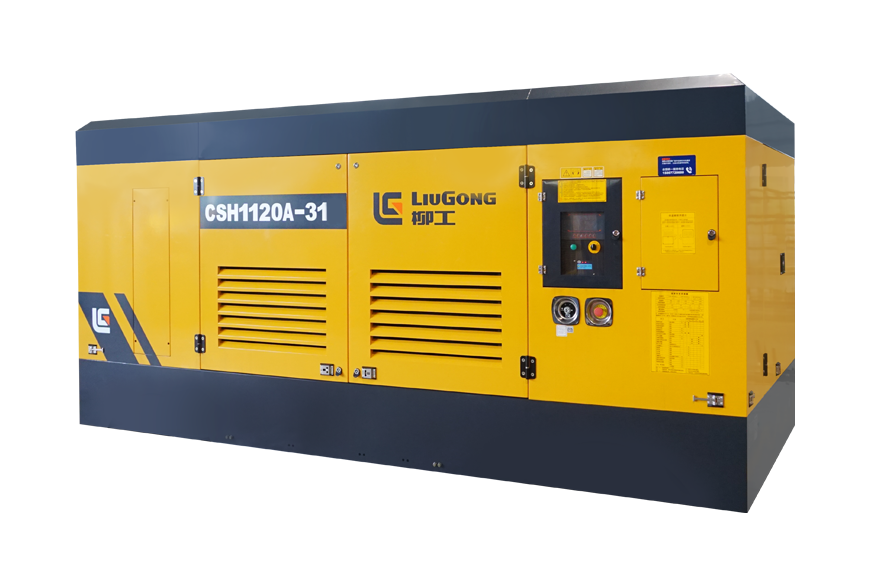

Model CSH1120A-31
Free Air Delivery  29-25/31.5-26 M³/min
Compressor Pressure  18-25/18-31 Bar
Compressor oil  110 L
Dual transformation Dual
Engine  Type YC6MK400L-H300
Engine Power 295 kW
Working and Idling speed 1750/1300~1900/1300 rpm
Number of cylinders  6
Displacement 9.41 L
Fuel capacity 650 L
Weight 4.2 t
outlet×quantity G2×1 & G¾×1
tire size×quantity Skid mounted
Dimensions 3786x1832x2142 mm
Noise 83±3 dB(A)
