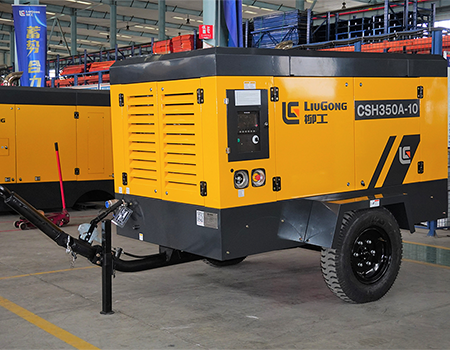

CSH350A-10

Short Description:

● Adopting LGIR two-stage compressor head, it has high compression efficiency, reduces compressed air leakage, and ensures sufficient pressure and exhaust volume.

● Gas volume intelligent adjustment: The intelligent control system can adapt to various complex working conditions, achieve intelligent automatic adjustment, and match the corresponding gas volume.

● Liugong has independently developed a unique control system that controls the engine with multiple threads. It can dynamically adjust the air volume and pressure in real-time to maintain an appropriate state, reducing excessive energy consumption.


Product Detail

Product Tags

Model CSH350A-10
Free Air Delivery 10 m³/min
Compressor Pressure  10 Bar
Compressor oil 26 L
Dual transformation
Single
Engine  Type
4BTAA3.9-C125
Engine Power 221 kW
Working and Idling speed
2000/1400rpm
Number of cylinders 4
Displacement 3.9 L
Fuel capacity 180 L
Weight 2 t
outlet×quantity G1½×1 & G¾×1
tire size×quantity two tires
Dimensions
3030x1950x1900mm
Noise 80±3 dB(A)
