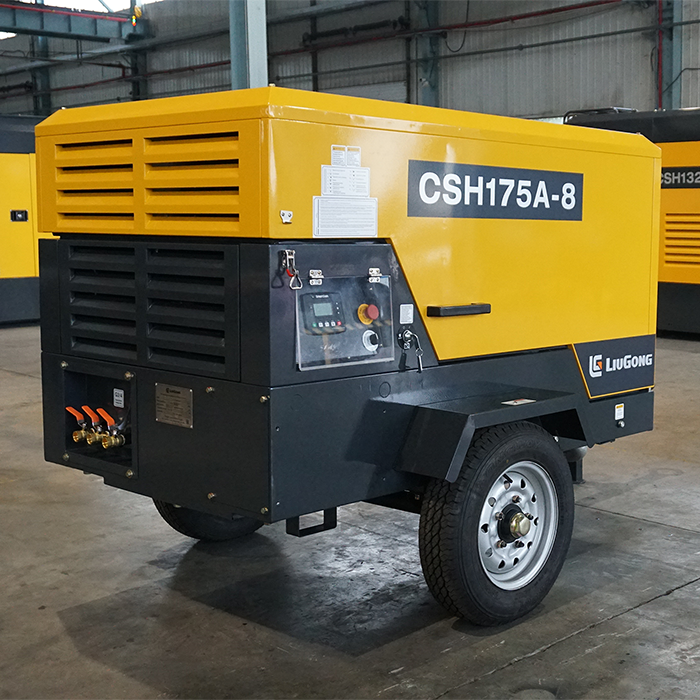

CSH175A-8

CSH175A-8 Featured Image
  • CSH175A-8
  • CSH175A-8

Short Description:

● Gas volume intelligent adjustment: The intelligent control system can adapt to various complex working conditions, achieve intelligent automatic adjustment, and match the corresponding gas volume.
● Liugong has independently developed a unique control system that controls the engine with multiple threads. It can dynamically adjust the air volume and pressure in real-time to maintain an appropriate state, reducing excessive energy consumption


Product Detail

Product Tags

Model CSH175A-8
Free Air Delivery  5 m³/min
Compressor Pressure  8 Bar
Compressor oil  10 L
Dual transformation  Single
Engine  Type
YC4FA55Z-T21
Engine Power
40.4 kW
Working and Idling speed
2350/1300 rpm
Number of cylinders  4
Displacement 3 L
Fuel capacity 70 L
Weight 0.9 t
outlet×quantity G¾
tire size×quantity
two tires
Dimensions
2590x1436x1461 mm
Noise 70±3 dB(A)


  • Previous:
  • Next:
    • Write your message here and send it to us

    Related products

    • CSH1100A-25

      CSH1100A-25

      Model CSH1100A-25 Free Air Delivery  31 m³/min Compressor Pressure  25 Bar Compressor oil  110 L Dual transformation  Single Engine  Type YC6MK400L-K20 Engine Power 295 kW Working and Idling speed 1830/1400 rpm Number of cylinders  6 Displacement 10.3 L Fuel capacity 650 L Weight 4 t outlet×quantity G2×1 & G¾×1 tire size×quantity Skid mounted Dimensions 3797x1832x2129 mm Noise 83±3 dB(A)

      See more products >
    • CSH1450A-35

      CSH1450A-35

      Model CSH1450A-35 Free Air Delivery 41-39/41-35 m³/min Compressor Pressure 21-25/21-40 Bar Compressor oil  160 L Dual transformation Dual Engine  Type YCK16775-T300 Engine Power 570 kW Working and Idling speed 1800/1300 rpm Number of cylinders  6 Displacement 15.93 L Fuel capacity 1100 L Weight 6.4 t outlet×quantity G2×1 & G¾×1 tire size×quantity Skid mounted Dimensions 4443x2200x2540mm Noise 85±3 dB(A)

      See more products >
    • HGT18-18C

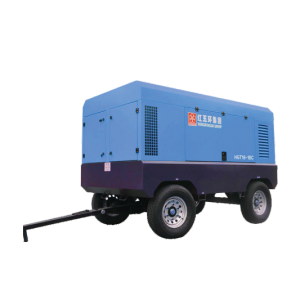

      HGT18-18C
