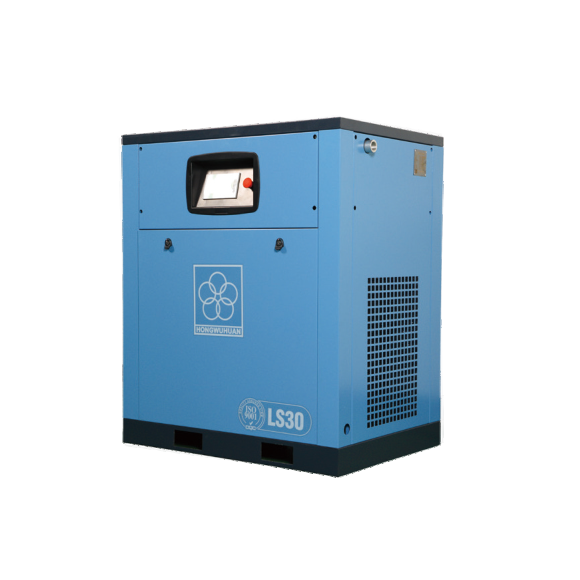

LS30
| Model | LS30 |
| Free Air Delivery | 3.4m³/min |
| Pressure | 8 bar |
| Engine | 22 KW |
| Air End | One stage |
| Motor Protection Class | IP23 |
| Weight | 410 Kg |
| Dimensions(L*W*H) | 1050X780X1260 mm |
Related products
-
CSH1120A-31
Model CSH1120A-31 Free Air Delivery 29-25/31.5-26 M³/min Compressor Pressure 18-25/18-31 Bar Compressor oil 110 L Dual transformation Dual Engine Type YC6MK400L-H300 Engine Power 295 kW Working and Idling speed 1750/1300~1900/1300 rpm Number of cylinders 6 Displacement 9.41 L Fuel capacity 650 L Weight 4.2 t outlet×quantity G2×1 & G¾×1 tire size×quantity Skid mounted Dimensions 3786x1832x2142 mm Noise 83±3 dB(A)
-
CSH500A-14
Model CSH500A-14 Free Air Delivery 15 m³/min Compressor Pressure 14 Bar Compressor oil 35 L Dual transformation Single Engine Type YCA05190-T300 Engine Power 140 kW Working and Idling speed 1950/1400 rpm Number of cylinders 4 Displacement 4.8 L Fuel capacity 180 L Weight 2 t outlet×quantity G1½×1 & G¾×1 tire size×quantity two tires Dimensions 3326x2000x2113 mm Noise 82±3 dB(A)
-
CSH660A-20
Model CSH660A-20 Free Air Delivery 18 m³/min Compressor Pressure 20 Bar Compressor oil 45 L Dual transformation Single Engine Type YC6A260-H300 Engine Power 191 kW Working and Idling speed 1900/1400 rpm Number of cylinders 6 Displacement 7.255 L Fuel capacity 340 L Weight 2.8 t outlet×quantity G1½×1 & G¾×1 tire size×quantity four tires Dimensions 3787x1601x2226 mm Noise 82±3 dB(A)
-
HW15012
Model HW15012 Free Air Delivery 1.2m³/min Pressure 12.5 bar Engine 4 pole-15 KW/380 V/50 HZ Number of Cylinders And Diameter 2Xφ125+1Xφ100mm Air Tank Volume 321 L Weight 487 Kg Dimensions(L*W*H) 1740X590X1300 mm
-
LS75
Model LS75 Free Air Delivery 9.5m³/min Pressure 8 bar Engine 55 KW Air End One stage Motor Protection Class IP23 Weight 1200 Kg Dimensions(L*W*H) 1600X970X1450 mm
-

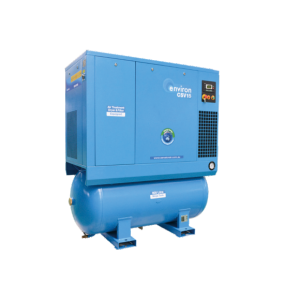

CSV15-8
Model CSV15-8 Free Air Delivery 2.45m³/min Pressure 8 bar Engine 15 KW Air End One stage Motor Protection Class IP55 Weight 745 Kg Dimensions(L*W*H) 1700X780X1870 mm
