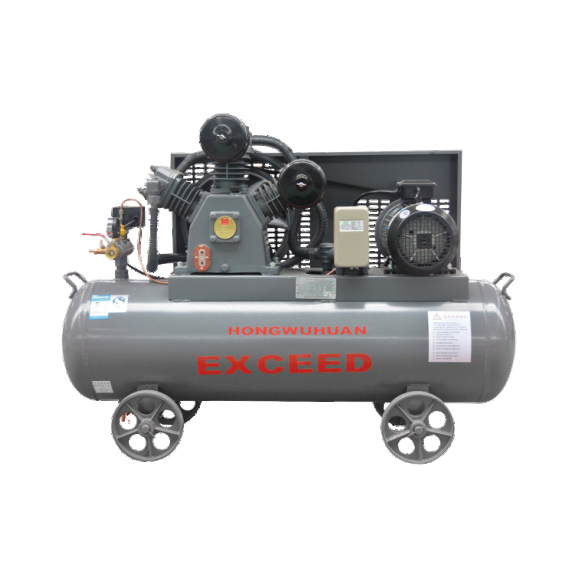

HW15007
| Model | HW15007 |
| Free Air Delivery | 1.5m³/min |
| Pressure | 7 bar |
| Engine | 4 pole-15 KW/380 V/50 HZ |
| Number of Cylinders And Diameter | 2Xφ125+1Xφ110 mm |
| Air Tank Volume | 321 L |
| Weight | 487 Kg |
| Dimensions(L*W*H) | 1740X590X1300 mm |
Related products
-
CSH500A-14
Model CSH500A-14 Free Air Delivery 15 m³/min Compressor Pressure 14 Bar Compressor oil 35 L Dual transformation Single Engine Type YCA05190-T300 Engine Power 140 kW Working and Idling speed 1950/1400 rpm Number of cylinders 4 Displacement 4.8 L Fuel capacity 180 L Weight 2 t outlet×quantity G1½×1 & G¾×1 tire size×quantity two tires Dimensions 3326x2000x2113 mm Noise 82±3 dB(A)
-
LS20
Model LS20 Free Air Delivery 2m³/min Pressure 8 bar Engine 15 KW Air End One stage Motor Protection Class IP23 Weight 220 Kg Dimensions(L*W*H) 950X680X1110 mm
-
LS50
Model LS50 Free Air Delivery 6.1m³/min Pressure 8 bar Engine 37KW Air End One stage Motor Protection Class IP23 Weight 485 Kg Dimensions(L*W*H) 1200X1000X1430 mm
-
CSH1450A-35
Model CSH1450A-35 Free Air Delivery 41-39/41-35 m³/min Compressor Pressure 21-25/21-40 Bar Compressor oil 160 L Dual transformation Dual Engine Type YCK16775-T300 Engine Power 570 kW Working and Idling speed 1800/1300 rpm Number of cylinders 6 Displacement 15.93 L Fuel capacity 1100 L Weight 6.4 t outlet×quantity G2×1 & G¾×1 tire size×quantity Skid mounted Dimensions 4443x2200x2540mm Noise 85±3 dB(A)
-
HGT300-8
Model HGT300-8 Free Air Delivery 9 m³/min Pressure 8 bar China III Engine Yuchai/88kw Fuel Tank Volume 115 L Air End Single stage Weight 1950 kg Dimensions(L*W*H) 2880X1780X1760 mm
-

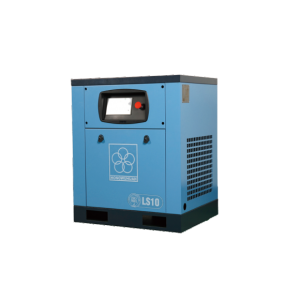

LS10
Model LS10 Free Air Delivery 1m³/min Pressure 8 bar Engine 7.5 KW Air End One stage Motor Protection Class IP23 Weight 180 Kg Dimensions(L*W*H) 710X580X860 mm
