HGT31-25C
| Model | HGT31-25C |
| Free Air Delivery | 35/31 m³/min |
| Pressure | 18/25 bar |
| China III Engine | Cummins |
| Fuel Tank Volume | 450 L |
| Air End | Double stage |
| Weight | 5500 kg |
| Dimensions(L*W*H) | 3600X1960X2450 mm |
Related products
-
CSH500A-14
Model CSH500A-14 Free Air Delivery 15 m³/min Compressor Pressure 14 Bar Compressor oil 35 L Dual transformation Single Engine Type YCA05190-T300 Engine Power 140 kW Working and Idling speed 1950/1400 rpm Number of cylinders 4 Displacement 4.8 L Fuel capacity 180 L Weight 2 t outlet×quantity G1½×1 & G¾×1 tire size×quantity two tires Dimensions 3326x2000x2113 mm Noise 82±3 dB(A)
-
CSH660A-20
Model CSH660A-20 Free Air Delivery 18 m³/min Compressor Pressure 20 Bar Compressor oil 45 L Dual transformation Single Engine Type YC6A260-H300 Engine Power 191 kW Working and Idling speed 1900/1400 rpm Number of cylinders 6 Displacement 7.255 L Fuel capacity 340 L Weight 2.8 t outlet×quantity G1½×1 & G¾×1 tire size×quantity four tires Dimensions 3787x1601x2226 mm Noise 82±3 dB(A)
-
CSH560A-8
Model CSH560A-8 Free Air Delivery 16 m³/min Compressor Pressure 8 Bar Compressor oil 35 L Dual transformation Single Engine Type YCA05190-T300 Engine Power 140 kW Working and Idling speed 2200/1400 rpm Number of cylinders 4 Displacement 4.8 L Fuel capacity 180 L Weight 2 t outlet×quantity G1½×1 & G¾×1 tire size×quantity two tires Dimensions 3326x2000x2113 mm Noise 82±3 dB(A)
-
HGT950-8C
Model HGT950-8C Free Air Delivery 28 m³/min Pressure 8 bar China III Engine Cummins/194kw Fuel Tank Volume 300 L Air End Double stage Weight 3900 kg Dimensions(L*W*H) 3460X1870X2300 mm
-

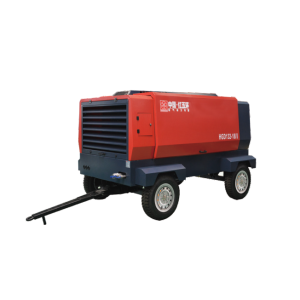

HGD132-18
Model HGD132-18 Free Air Delivery 15 m³/min Pressure 18 bar China III Engine 132 KW Machine Travel Mode Four wheels – portable Air End Single stage Weight 3200 kg Dimensions(L*W*H) 3430X1800X2030 mm
-

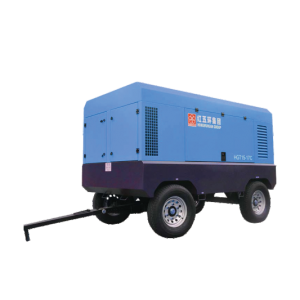

HGT15-17C
Model HGT15-17C Free Air Delivery 17/15 m³/min Pressure 13/17 bar China III Engine Cummins/157kw Fuel Tank Volume 220 L Air End Single stage Weight 3200 kg Dimensions(L*W*H) 3250X1670X2100 mm
