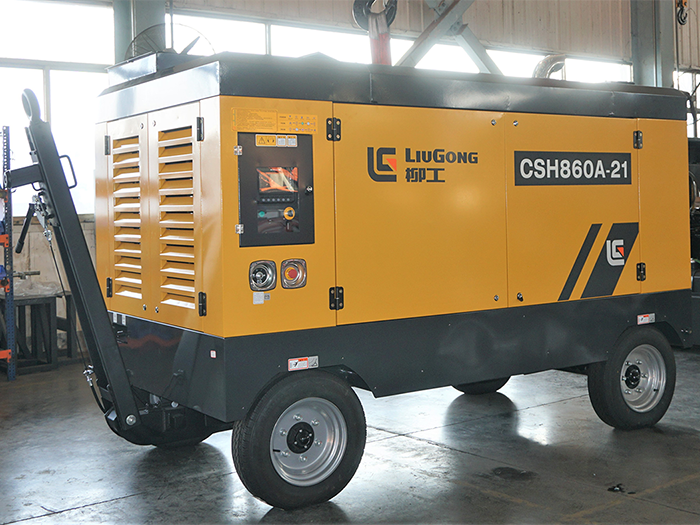

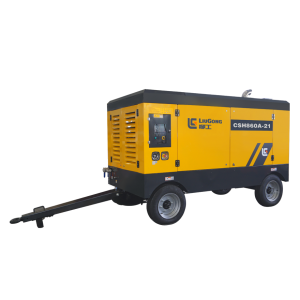

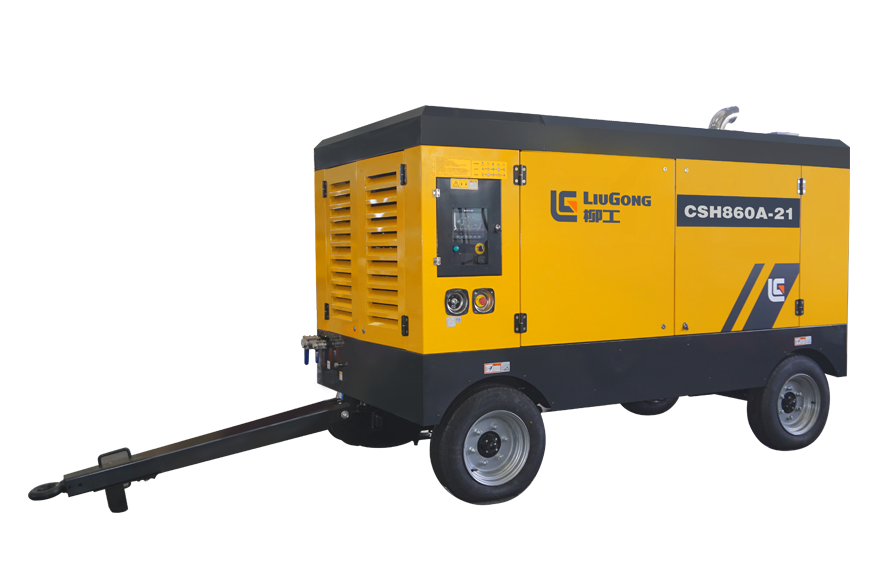

CSH860A-21

CSH860A-21 Featured Image
  • CSH860A-21

Short Description:

● Large head design, longer lifespan, higher efficiency, and better fuel saving performance

● Dual working condition design to meet the needs of different application fields

● Compact body, strengthened sheet metal design for mining to drilling

● Widely applicable, superior performance, suitable for engineering leasing

● Intelligent butler system: including remote control, fault reminder, report generation and other functions

● 7-inch color screen controller: intelligent control, simple operation, intuitive information




Product Detail

Product Tags

Model CSH860A-21
Free Air Delivery 24-18 m³/min
Compressor Pressure  21-21 Bar
Compressor oil  80 L
Dual transformation Dual
Engine  Type B7-T3
Engine Power 221 kW
Working and Idling speed 2000/1300 1600/1300 rpm
Number of cylinders 6
Displacement 6.79 L
Fuel capacity 340 L
Weight 3.2 t
outlet×quantity G2×1 & G¾×1
tire size×quantity four tires
Dimensions 3787x1601x2226mm
Noise 82±3 dB(A)

1


  • Previous:
  • Next:
    • Write your message here and send it to us

    Related products

    • HGT31-25C

      HGT31-25C

      Model HGT31-25C Free Air Delivery 35/31 m³/min Pressure 18/25 bar China III Engine Cummins Fuel Tank Volume 450 L Air End Double stage Weight 5500 kg Dimensions(L*W*H) 3600X1960X2450 mm

      See more products >
    • CSH1100A-25

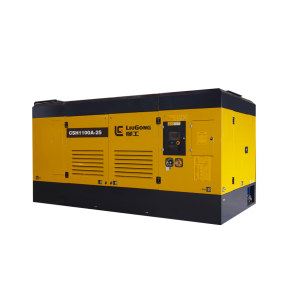

      CSH1100A-25

      Model CSH1100A-25 Free Air Delivery  31 m³/min Compressor Pressure  25 Bar Compressor oil  110 L Dual transformation  Single Engine  Type YC6MK400L-K20 Engine Power 295 kW Working and Idling speed 1830/1400 rpm Number of cylinders  6 Displacement 10.3 L Fuel capacity 650 L Weight 4 t outlet×quantity G2×1 & G¾×1 tire size×quantity Skid mounted Dimensions 3797x1832x2129 mm Noise 83±3 dB(A)

      See more products >
    • CSH450A-8

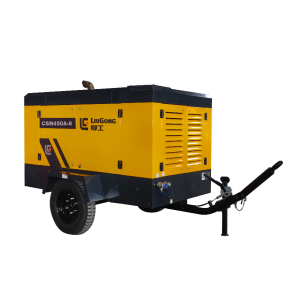

      CSH450A-8

      Model CSH450A-8 Free Air Delivery  12.5 m³/min Compressor Pressure  8 Bar Compressor oil  26L Dual transformation  Single Engine  Type YC4A130-H311 Engine Power 96 kW Working and Idling speed 2200/1400 rpm Number of cylinders  4 Displacement 4.8 L Fuel capacity 180 L Weight 2 t outlet×quantity G1½×1 & G¾×1 tire size×quantity two tires Dimensions 3326x2000x2113 mm Noise 80±3 dB(A)

      See more products >
    • HGT300-8

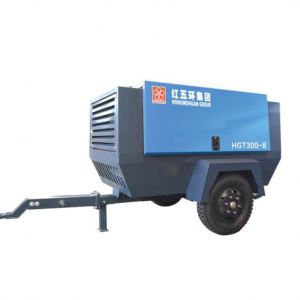

      HGT300-8

      Model HGT300-8 Free Air Delivery 9 m³/min Pressure 8 bar China III Engine Yuchai/88kw Fuel Tank Volume 115 L Air End Single stage Weight 1950 kg Dimensions(L*W*H) 2880X1780X1760 mm

      See more products >
    • CSH500A-14

      CSH500A-14

      Model CSH500A-14 Free Air Delivery  15 m³/min Compressor Pressure  14 Bar Compressor oil  35 L Dual transformation  Single Engine  Type YCA05190-T300 Engine Power 140 kW Working and Idling speed 1950/1400 rpm Number of cylinders  4 Displacement 4.8 L Fuel capacity 180 L Weight 2 t outlet×quantity G1½×1 & G¾×1 tire size×quantity two tires Dimensions 3326x2000x2113 mm Noise 82±3 dB(A)

      See more products >
    • CSH1320A-35

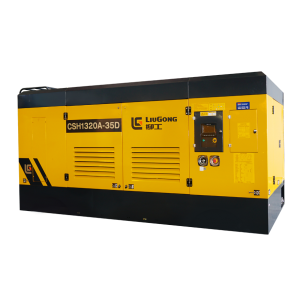

      CSH1320A-35
