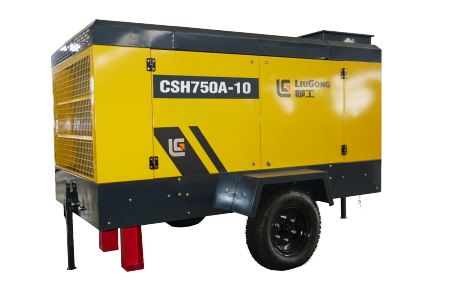

CSH750A-10

Short Description:

High efficiency: This compressor has a power output of up to 110 kW, capable of meeting various process requirements.
Low noise: The working principle of the screw compressor results in lower noise during operation, making it suitable for installation in multiple locations.
Low maintenance requirements: Compared to piston compressors, screw compressors do not require cooling time, allowing for continuous operation and requiring less maintenance.

Multiple drive options: Offer various drive methods such as belt drive and gear drive to meet the needs of different applications.

Send email to us

Product Detail

Product Tags

Compressor technical specifications
Dual transformation	Single
Free air delivery[m³/min]	21
Free air delivery[CFM]	750
Pressure[bar]	10
Pressure[psi]	145
Compressor oil[L]	80
Element	LGIR

Engine specifications
Type	6LTAA9.3
Power(kW)	162
Working and Idling Speed(rpm)	2000/1300
Number of Cylinders	6
Displacement (L)	9.3
Emission Levels(Standard)	Stage II
Fuel Capacity(L)	340

Dimensions and weight
Weight(t)	3
Outlet*Quantity	G2×1 & G¾×1
Tire Size*Quantity	Two Tires
Overall Dimensions(mm)	3897x2120x2247
Noise [dB(A)]	83±3
