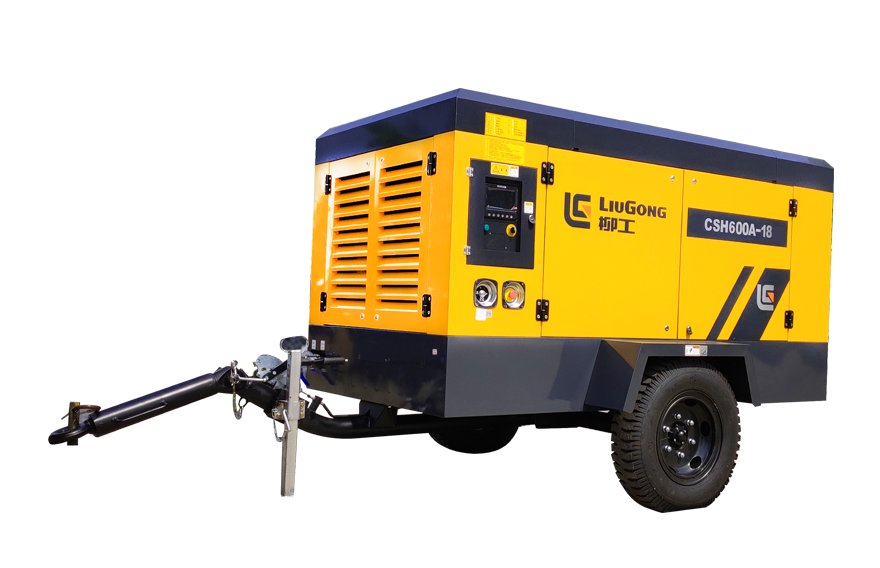

CSH600A-18

Short Description:

Efficient Compression: Utilizing the LGIR two-stage compressor head, it offers higher compression efficiency and provides more sufficient pressure.
Intelligent Adjustment: The intelligent volume adjustment system can adapt to complex working conditions and achieve intelligent automatic adjustment.
Energy-saving Design: The energy-saving pressure regulating design uses multi-thread control to adjust the engine speed in real time, enabling the real-time adjustment of volume and pressure.

Stable air intake: Solves the problems of low-temperature start-up difficulties and piston seal failure, reduces usage failures, and extends the machine’s lifespan.

Send email to us

Product Detail

Product Tags

Compressor technical specifications
Dual transformation	Single
Free air delivery[m³/min]	17
Free air delivery[CFM]	600
Pressure[bar]	18
Pressure[psi]	261
Compressor oil[L]	35
Element	LGIR

Engine specifications
Type	YC6J220-T300
Power(kW)	162
Working and Idling Speed(rpm)	2000/1400
Number of Cylinders	6
Displacement (L)	6.494
Emission Levels(Standard)	Stage III
Fuel Capacity(L)	340

Dimensions and weight
Weight(t)	2.7
Outlet*Quantity	G1½×1 & G¾×1
Tire Size*Quantity	Two Tires
Overall Dimensions(mm)	3897x2120x2247
Noise [dB(A)]	82±3
