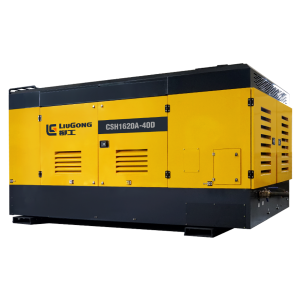

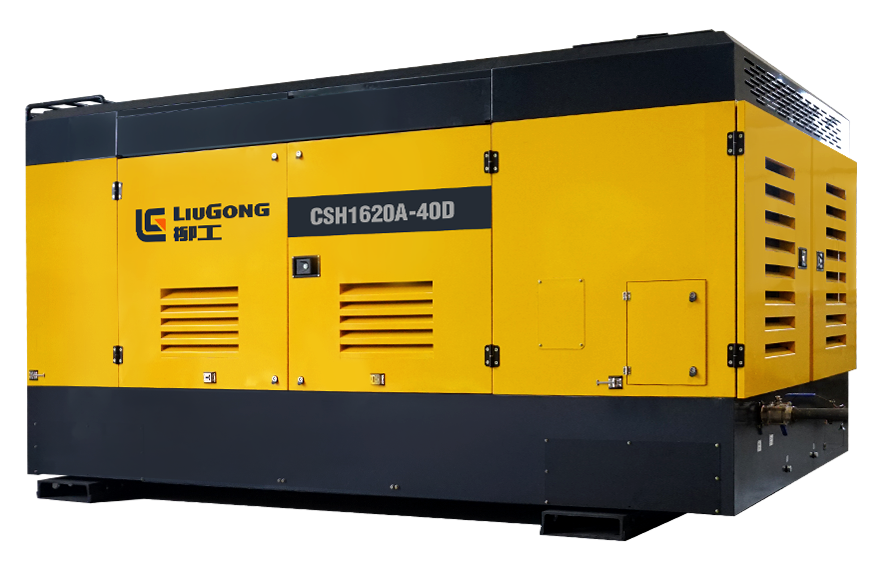

CSH1620A-40

CSH1620A-40 Featured Image
  • CSH1620A-40

Short Description:

● Adopting LGIR two-stage compressor head, the compression efficiency is higher and provides more sufficient pressure. The machine head adopts a new high-efficiency profile to reduce the leakage of compressed air and ensure sufficient pressure and exhaust volume.

● Powerful power system: equipped with a high-power engine and a heavy-duty system design, it has excellent starting performance and outstanding fuel economy performance, suitable for various harsh working conditions.

● Gas volume intelligent adjustment: The intelligent control system can adapt to various complex working conditions, achieve intelligent automatic adjustment, and match the corresponding gas volume.

● Energy saving pressure regulation design: LiuGong has independently developed a unique control system that controls the engine with multiple threads. It can dynamically adjust the air volume and pressure in real-time to maintain an appropriate state, reducing excessive energy consumption.


Product Detail

Product Tags

Model CSH1620A-40
Free Air Delivery 42-40/45.5-38 M³/min
Compressor Pressure 15-20/15-40 Bar
Compressor oil 165 L
Dual transformation multiple
Engine  Type YCK16775-T300
Engine Power 588 kW
Working and Idling speed 1720/1300~1850/1300 rpm
Number of cylinders  6
Displacement 19.6 L
Fuel capacity 1100 L
Weight 6.8 t
outlet×quantity G2×1 & G¾×1
tire size×quantity Skid mounted
Dimensions 4443x2200x2540 mm
Noise 85±3 dB(A)

  • Previous:
  • Next:
    • Write your message here and send it to us

    Related products

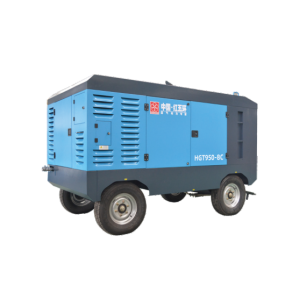

    • HGT950-8C

      HGT950-8C

      Model HGT950-8C Free Air Delivery 28 m³/min Pressure 8 bar China III Engine Cummins/194kw Fuel Tank Volume 300 L Air End Double stage Weight 3900 kg Dimensions(L*W*H) 3460X1870X2300 mm

      See more products >

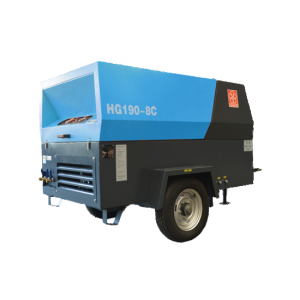

    • HGT190-8C

      HGT190-8C

      Model HGT190-8C Free Air Delivery 5.3 m³/min Pressure 8 bar China III Engine Cummins/Yuchai/QUANCHAI Fuel Tank Volume 80 L Air End Single stage Weight 1000 kg Dimensions(L*W*H) 2750X1410X1530 mm

      See more products >

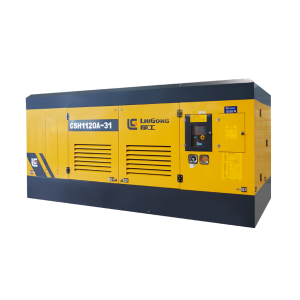

    • CSH1120A-31

      CSH1120A-31

      Model CSH1120A-31 Free Air Delivery  29-25/31.5-26 M³/min Compressor Pressure  18-25/18-31 Bar Compressor oil  110 L Dual transformation Dual Engine  Type YC6MK400L-H300 Engine Power 295 kW Working and Idling speed 1750/1300~1900/1300 rpm Number of cylinders  6 Displacement 9.41 L Fuel capacity 650 L Weight 4.2 t outlet×quantity G2×1 & G¾×1 tire size×quantity Skid mounted Dimensions 3786x1832x2142 mm Noise 83±3 dB(A)

      See more products >

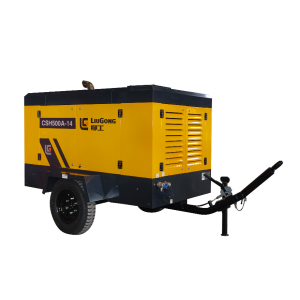

    • CSH500A-14

      CSH500A-14

      Model CSH500A-14 Free Air Delivery  15 m³/min Compressor Pressure  14 Bar Compressor oil  35 L Dual transformation  Single Engine  Type YCA05190-T300 Engine Power 140 kW Working and Idling speed 1950/1400 rpm Number of cylinders  4 Displacement 4.8 L Fuel capacity 180 L Weight 2 t outlet×quantity G1½×1 & G¾×1 tire size×quantity two tires Dimensions 3326x2000x2113 mm Noise 82±3 dB(A)

      See more products >
    • CSH175A-8

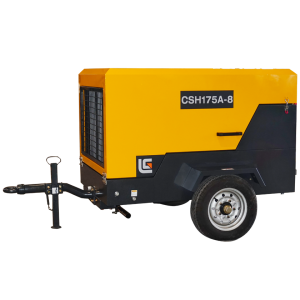

      CSH175A-8

      Model CSH175A-8 Free Air Delivery  5 m³/min Compressor Pressure  8 Bar Compressor oil  10 L Dual transformation  Single Engine  Type YC4FA55Z-T21 Engine Power 40.4 kW Working and Idling speed 2350/1300 rpm Number of cylinders  4 Displacement 3 L Fuel capacity 70 L Weight 0.9 t outlet×quantity G¾ tire size×quantity two tires Dimensions 2590x1436x1461 mm Noise 70±3 dB(A)

      See more products >

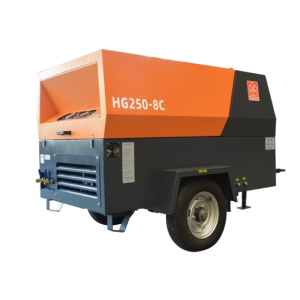

    • HG250-8
