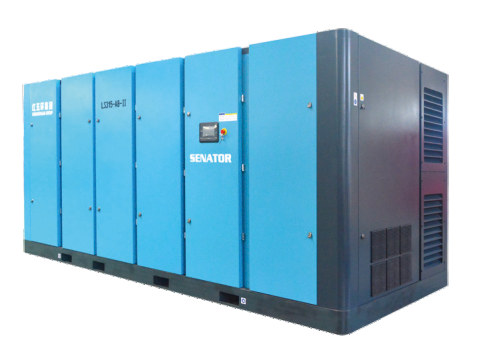

LS315-A8-Ⅱ
| Model | LS315-A8-Ⅱ |
| Free Air Delivery | 70m³/min |
| Pressure | 8 bar |
| Engine | 315 KW |
| Air End | Two stage |
| Motor Protection Class | IP55 |
| Weight | 9300 Kg |
| Dimensions(L*W*H) | 5000X2300X2300 mm |
