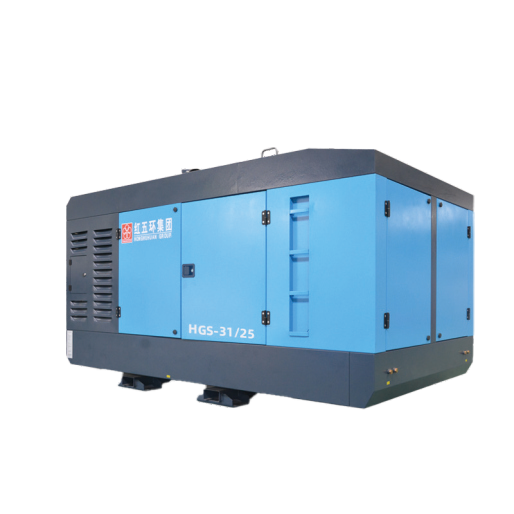

HGS-31/25Y
| Model | HGS-31/25Y |
| Free Air Delivery | 31/33m³/min |
| Pressure | 25/18 bar |
| China III Engine | Cummins/316kwYuchai /295kw |
| Fuel Tank Volume | 450 L |
| Air End | Double stage |
| Weight | 4800 kg |
| Dimensions(L*W*H) | 3900X1960X2250 mm |
